TRITON — Automatic Antenna Tracker

Project Overview

Radio-to-WiFi bridge with auto-tracking biquad antenna for ~5km UAV telemetry range

Skills Used

3D design (Autodesk Fusion 360) STM32 (Cortex-M4) ESP8266 / Arduino Wi-Fi bridging GPS & IMU integration PID motor control Binary protocols

Overview

TRITON bridges long-range radio telemetry (~5km) to WiFi with automatic antenna tracking. The STM32F407-based relay station with dual-axis motors and biquad antenna receives tracking commands from PIGEON GCS, while an ESP8266 (ESP-01) module provides transparent serial-to-WiFi bridging.

Features

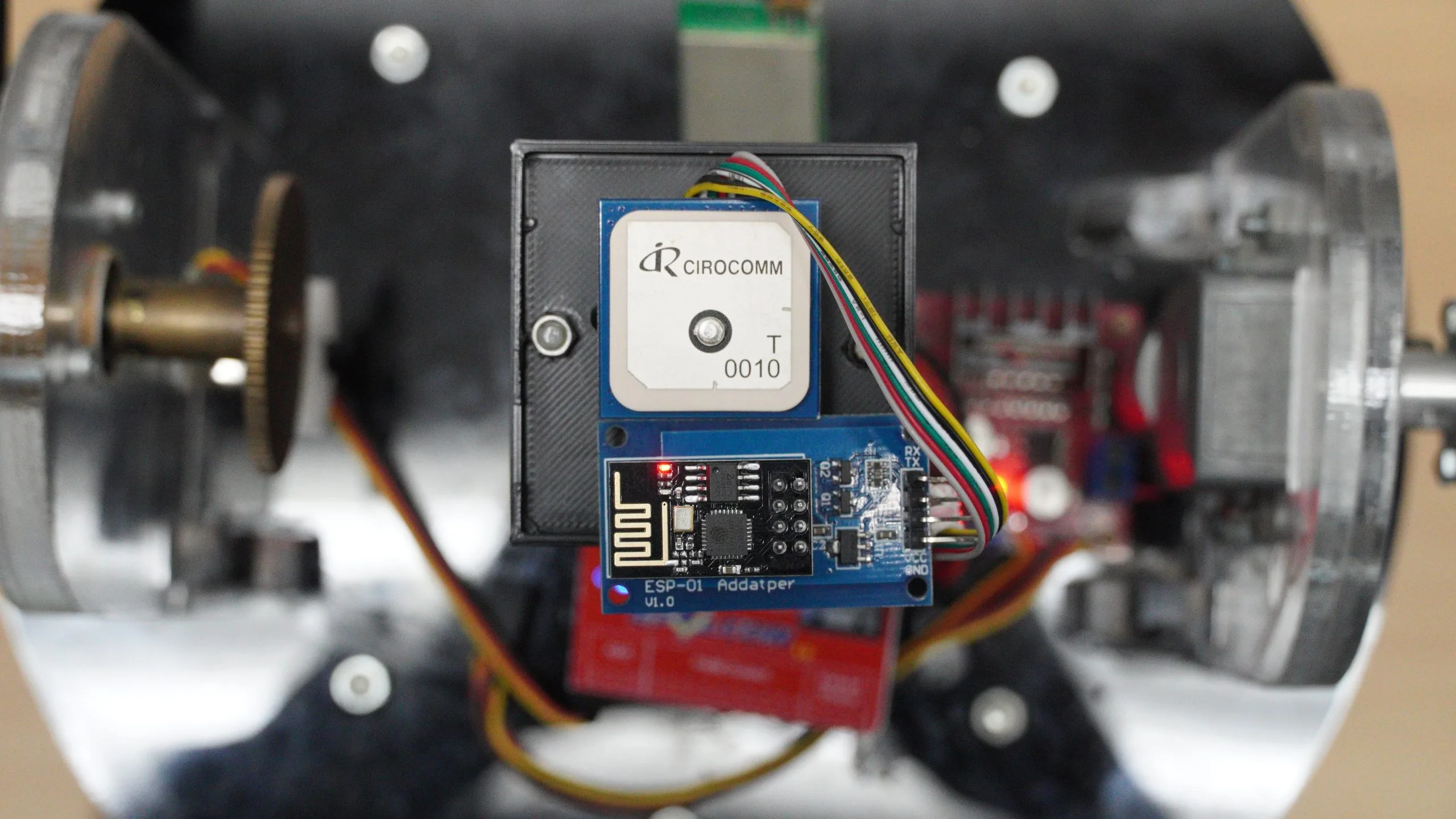

Triton Front Triton Top

Auto-Tracking System

  • PIGEON GCS calculates bearing/elevation from UAV & tracker GPS (Haversine)
  • STM32 receives tracking commands and controls motors via PID
  • HMC5883L magnetometer for heading, potentiometer for pitch feedback
  • 500ms update rate with continuous position tracking

WiFi Bridge (ESP-01)

  • Creates “TRITON_WIFI” Access Point for ground station
  • TCP (reliable) or UDP (low-latency, multi-client) modes
  • High-speed UART (up to 1Mbps) for fast telemetry forwarding
  • Transparent bidirectional serial-to-WiFi bridge
  • mDNS discovery as “esphw.local”
  • Supports MAVLink and proprietary protocols

Hardware

  • STM32F407VG with H-bridge motor drivers
  • ESP8266 (ESP-01) WiFi module
  • Biquad directional antenna (2.4GHz)
  • GPS, HMC5883L compass, barometer
  • 3× UART interfaces (GPS, bridge, debug)

System Architecture

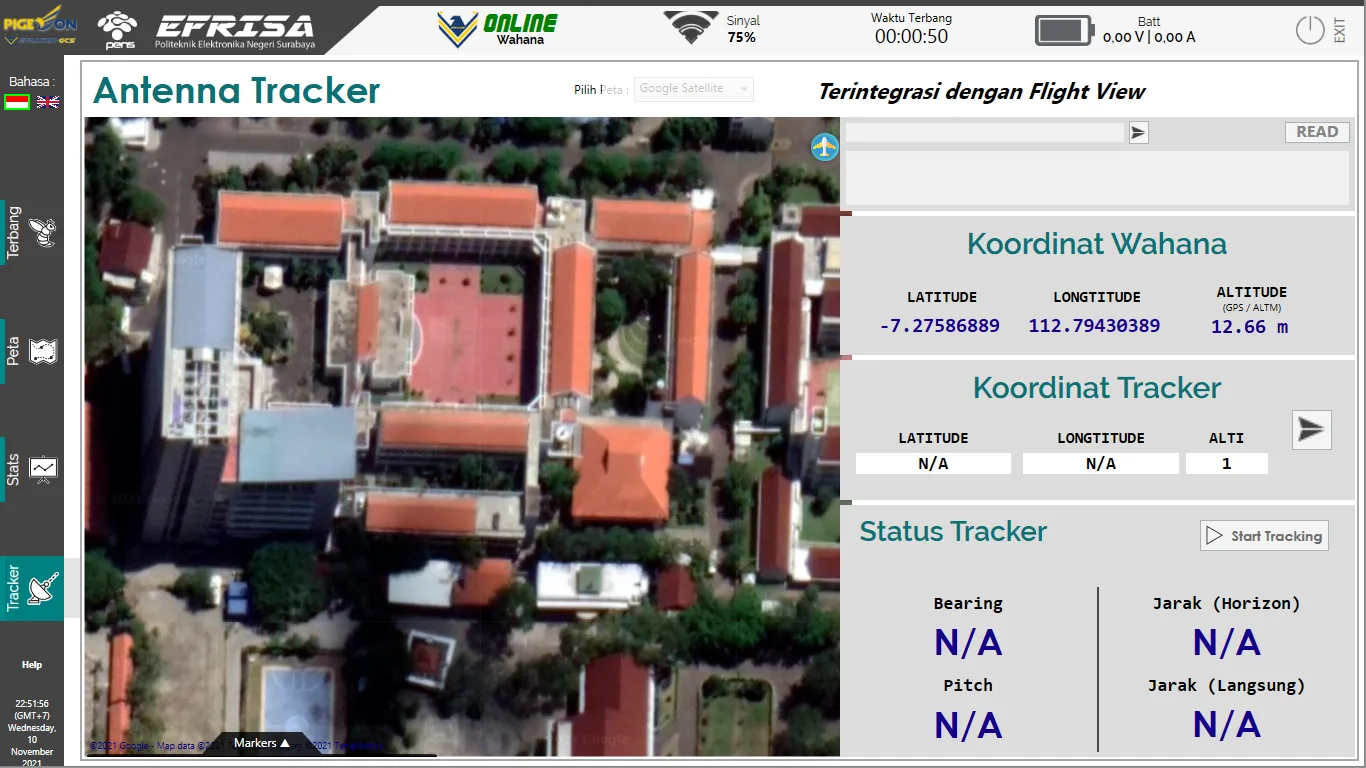

Pigeon Tracking View
UAV Radio Telemetry (~5km RF)
    ↕
Ground Radio RX (UART 1Mbps)
    ↕
TRITON Tracker (STM32 + ESP-01 relay)
    ↕ (WiFi AP - bidirectional)
PIGEON GCS
  • Sends UAV control commands
  • Calculates aim angles from GPS
  • Commands tracker to aim biquad antenna

TRITON Binary Protocol (21 bytes): Header ‘T’ + Yaw + Pitch + Altitude + Lat + Lon (all float32)

Bridge Modes

  • TCP: Port 61258, single client, reliable
  • UDP: Multi-client (up to 10), low-latency, 10s timeout

Technical Stack

Embedded C · STM32 HAL · ESP8266/Arduino · WiFi AP Mode · TCP/UDP Bridge · GPS/GNSS · HMC5883L Compass · PID Control · H-Bridge Motor Drivers · Binary Protocols

Developed by EFRISA (EEPIS Flying Robot for Indonesia), GCS Division.

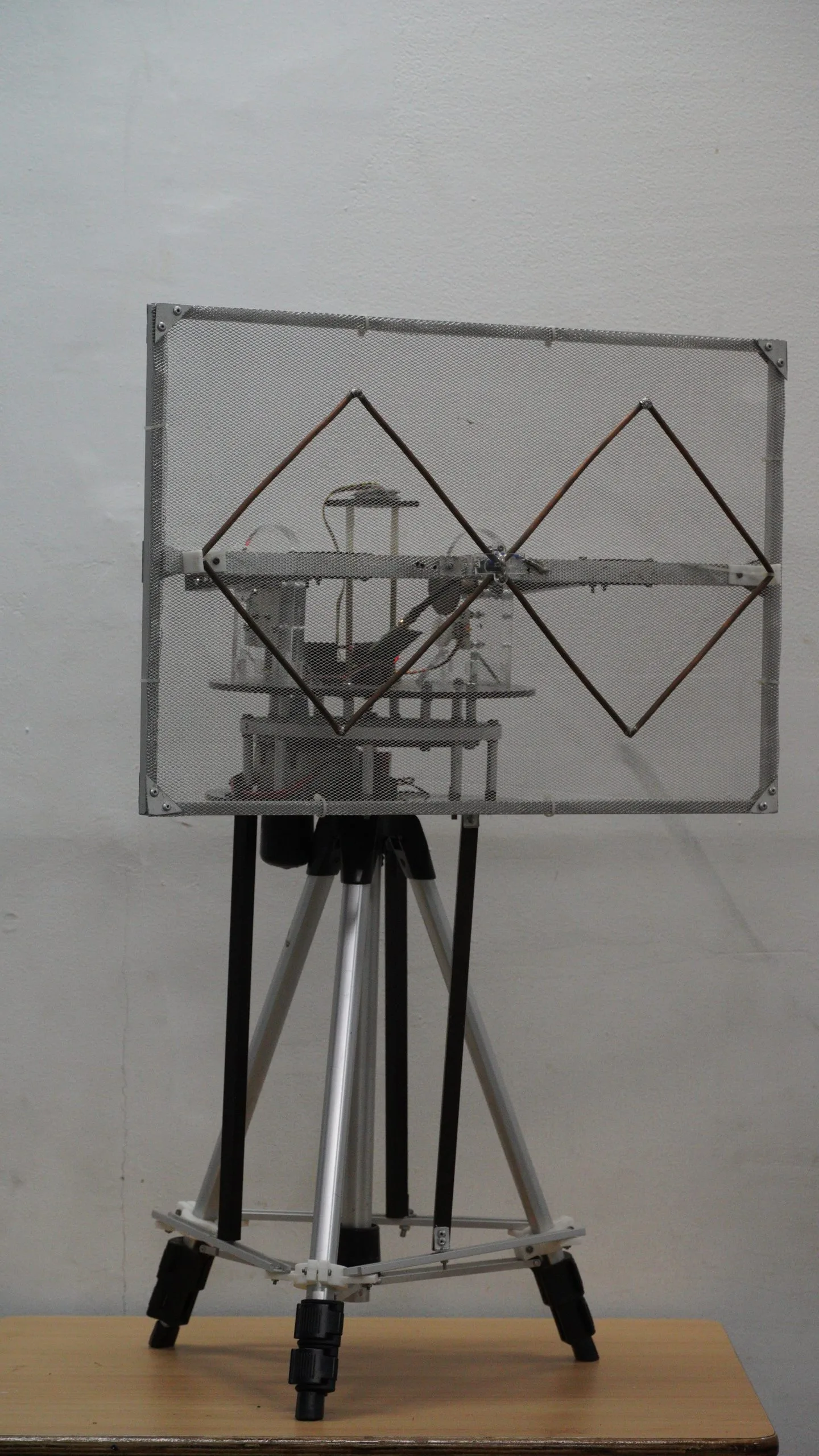

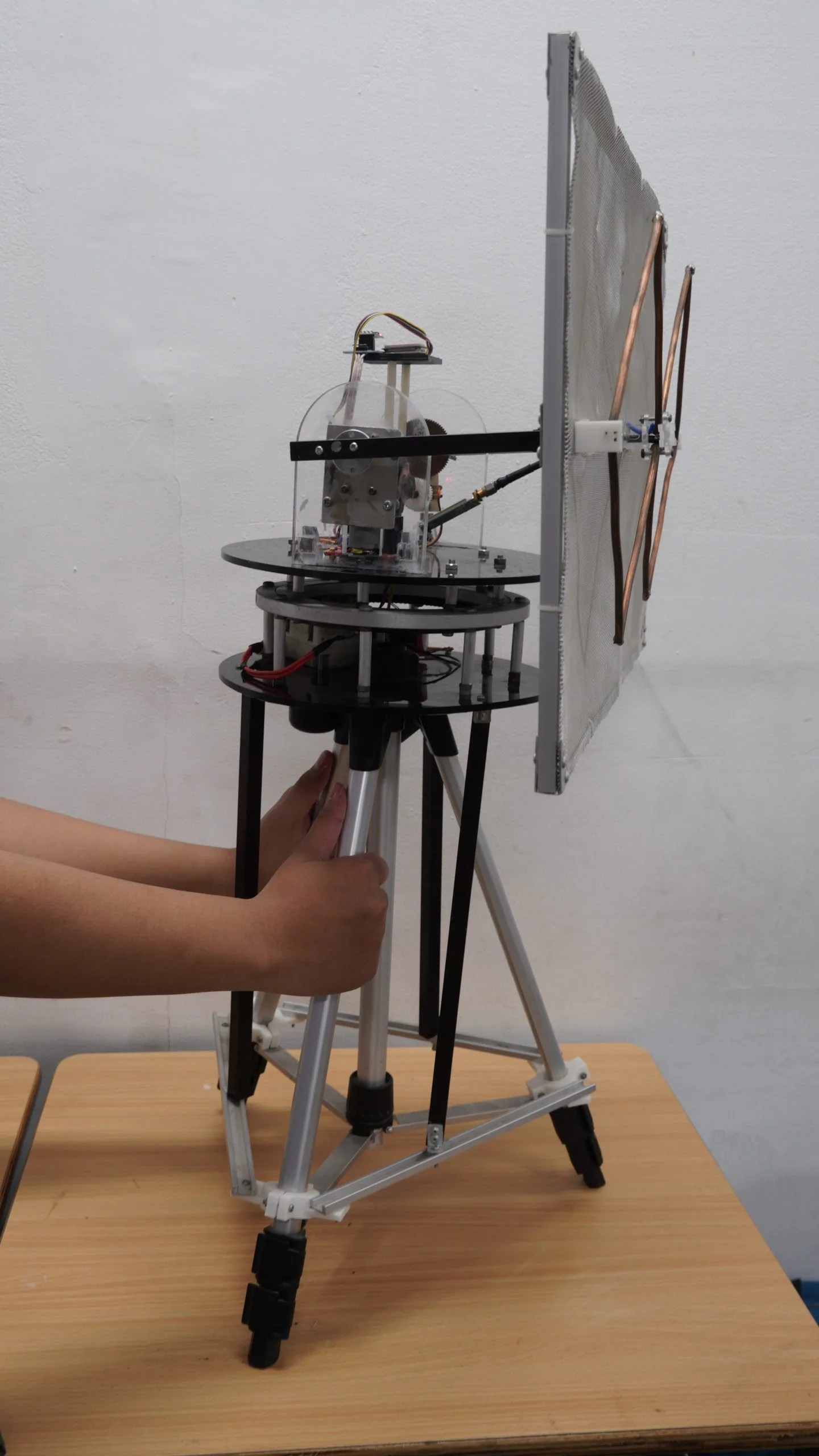

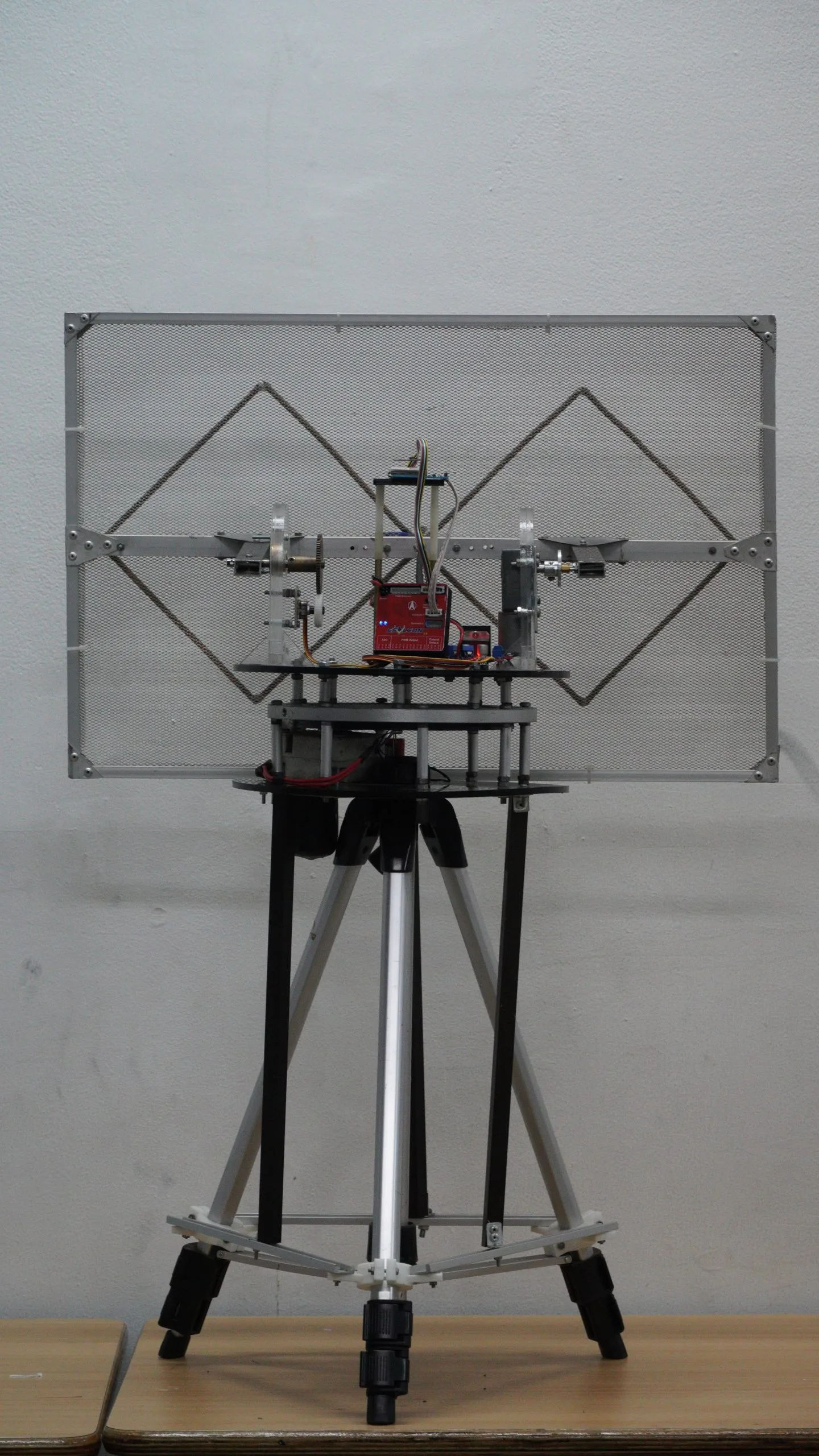

Triton Side 1 Triton Side 2 Triton Side 3

EFRISA, GCS Division
Due to the commercial nature of this project, the source code is not publicly available
